WiiM Vibelink Stereo Power Amplifier

The WiiM Vibelink is a state-of-the-art stereo amplifier delivering exceptional audio performance with both digital and analog inputs. Designed for audiophiles, this amplifier pairs perfectly with all WiiM streamers - including the WiiM Ultra, Pro Plus, Pro, and Mini - providing outstanding sound quality and seamless integration.

The premium built-in DAC ensures the highest fidelity from your digital sources, dynamically supporting variable sample rates and bit-depths for optimal sound. Beyond digital sources, it effortlessly handles analog inputs, making it a versatile solution for any audio setup.

• Amplifier
  • 2.0 CH Class-D digital amplifier
  • Max Power: 100 W/channel (8 ohms), 200 W/channel (4 ohms)
  • Terminating Impedance: 2.67~8 Ohms
  • Built-in DAC: ESS ES9038Q2M
  • Amplifier Chip: TI TPA3255
  • Operational Amplifier: TI OPA1611

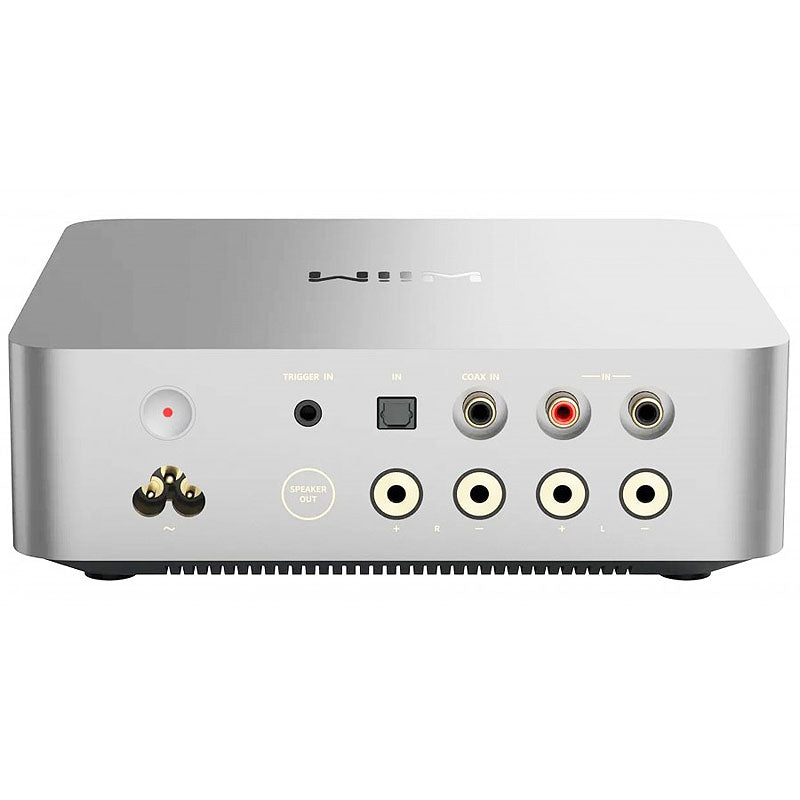

• Audio Input
  • Analog (RCA), or digital (Optical, Coaxial) ports supporting up to 24-
    bit/192kHz.
  • Anti-pop noise design for variable sample rates and bit-depth


• Audio Output
  • Stereo Banana Plugs
    • SNR: 120 dB (A-weighted)
    • THD+N: -105 dB (0.0005%)


• Power Adapter
  • 100~240V AC, 4.5A Max


• Other Features
  • Premium Build Quality: Aluminium oxide casing, innovative heat dissipation
    technology.
  • Adaptable Digital Input: Seamlessly manage variable sample rates and bit
    depths to prevent audio pops.
  • 12 V Trigger: Activate/deactivate your amplifier instantly, offering quick
    activation and energy-saving standby mode.

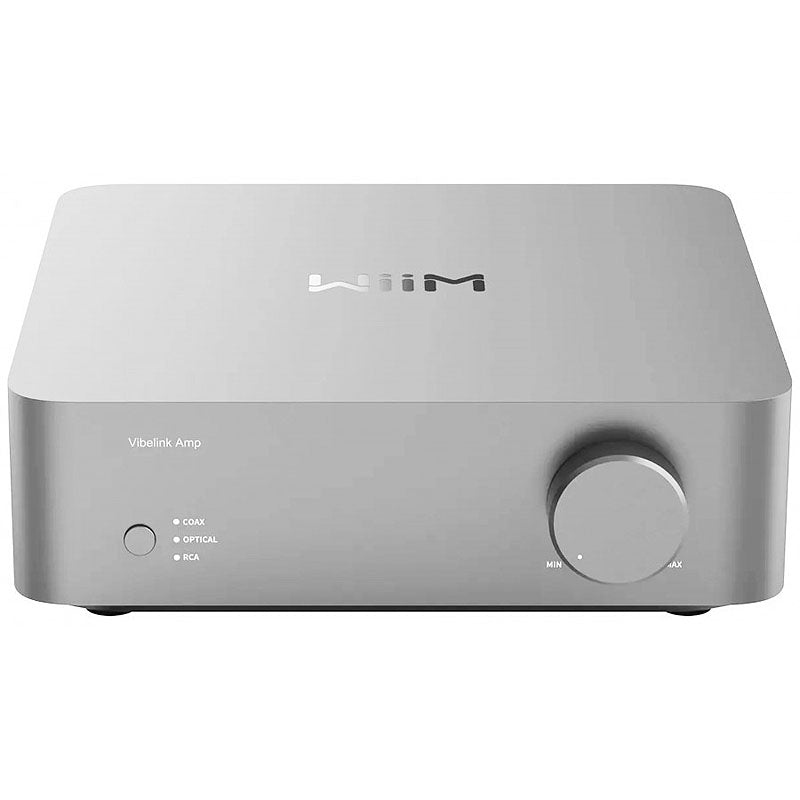

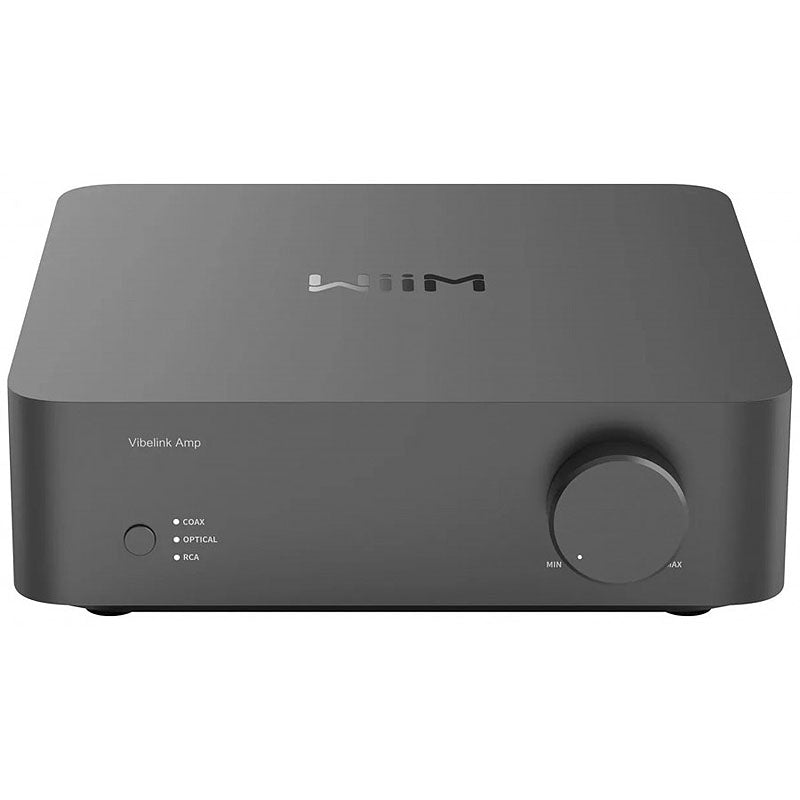

• Physical
  • Dimensions: 7.9 x 7.9 x 2.58 inches (200 x 200 x 63 mm)

  • LED: 3-color LED indicates status and source
  • Buttons:
    • Volume knob with Min/Max indication
    • Press button for switching sources

WiiM Vibelink Manual
