The WiiM MOD A80 is a stereo streaming amplifier, designed to deliver high-performance audio to integrated speakers throughout your home. Fully controllable via the WiiM app or within other control environments, the amp is designed to sit side-by-side with another amp in a rack, allowing you to scale your zones to suit small or large multiroom audio projects.
Key Features
- Wi-Fi 6E, Bluetooth 5.3 and Ethernet connectivity
- 60 W/channel into 8 ohms Class-D digital amplifier
- Highest Performance 32-bit ESS Sabre 9018K2M DAC
- Audio Inputs: Analog (RCA), Digital Optical, HDMI ARC, up to 24-bit/192 kHz
- USB Input: Connect USB disk for local music playback
- Subwoofer pre-out
- Audio Protocols: Chromecast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, Roon
- WiiM App Streaming Services: Spotify, Amazon Music, Deezer, Tunein, Tidal, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, Sound machine, Sound Track Your Brand, and more to come
- Equaliser: 24 presets, 10-band graphic EQ, 10-band parametric EQ, Bass management, Built-in room correction
- Supported Control Platforms: Control 4, RTI, URC, Josh.ai
- Rack mountable
| Power Input | 100-240V AC |
| Network | Wi-Fi 6E, 802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands |
| Bluetooth | Bluetooth 5.3 with BLE and BT supports both A2DP receiver and transmitter, AVRCP, HID, works with the WiiM Voice Remote |
| Audio Input | Analog (RCA), Digital Optical Port, HDMI ARC, up to 24-bit/192 kHz |

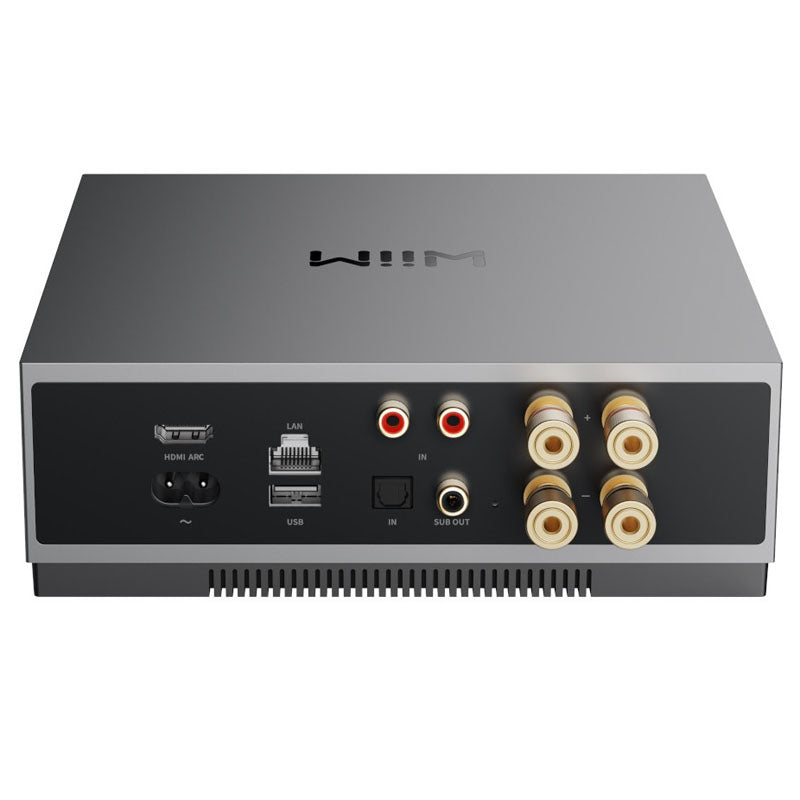

| Audio Output | Banana (x2), Subwoofer out |
| USB | USB Host: Connects to USB disk for local music playback USB Audio: Supports two-channel USB audio output |
| Amplifier | TI TPA 3255 Class-D digital amplifier |
| Power | 60 W/channel (8 ohms), 120 W/channel (4 ohms) |
| DAC | Highest Performance 32-bit ESS Sabre 9018K2M |
| SNR | 108 dB |
| THD+N | - 95 dB, 5W @ 8 Ohms |
| Audio Codec | MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG |
| Equalizer | 24 preset EQ settings for different music genres 10-band graphic EQ that can adjust to optimize sound performance for every audio source (Line in, BT or Network) 10-band parametric R/L EQ that can adjust to optimize the sound performance based on your room characteristics, allowing more fine granular adjustment Bass management Built-In Room Correction |
| Protocol | Chromecast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, Roon |
| Streaming Services in WiiM Home App | Spotify, Amazon Music, Deezer, Tunein, Tidal, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, Sound machine, Sound Track Your Brand, and more to come |
| Supported Control Platforms | Control 4, RTI, URC, Josh.ai |
| Weight | 68.26 oz (1.935 kg) |
| Dimension | (L) 7.48 x (W) 7.48 x (H) 2.52 (Inch) / (L) 190 x (W) 190 x (H) 64 (mm) |
| What’s in the box | WiiM CI MOD A80 (1), Optical cable (1), Stereo RCA cable (1), HDMI cable (1), Power cable (1), Screws (7), Mounting brackets (2) |
