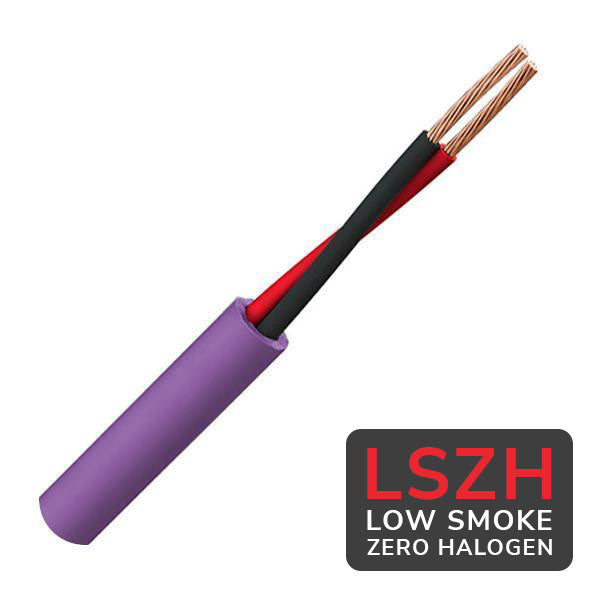

This high performance 2-core 14AWG TruSound speaker cable combines flexibility with optimum performance levels through highly stranded OFC (Oxygen Free Copper) conductors.
LSHF (Low Smoke Halogen Free) rated with a distinctive violet jacket for easy identification. Ideal for professional installations in pubs, clubs, gyms, hotels and high-end residential applications.
Features:
- Professional grade speaker cable
- LSHF (Low Smoke Halogen Free)
- OFC (Oxygen Free Copper) conductors
- Easy strip jacket, free from talcum
PLEASE NOTE ALL SPEAKER CABLES ARE SUPPLIED WITHOUT BANANA PLUGS
Construction
Conductor Material: 99.999% Oxygen Free Bare Copper
Number of Strands: 105/0.16mm
Insulation Material: Low Smoke Halogen Free (LSHF)
Number of Cores: 2
Sheath Material: Low Smoke Halogen Free (LSHF)
Sheath Colour: Violet
Core Identification: Red, Black
Electrical Characteristics
Nominal Conductor Resistance: < 8.5 Ω/km
Insulation Resistance: > 200 MΩ.M
Voltage Rating: 450/750V AppliestoCEm arkedFS C/T ru brandedstockonly
Test Voltage: 2.5kV for 5 Minutes
Physical Characteristics
Overall Diameter: 7.1 ± 0.3mm
Min. Bend Radius: 15 x OD
Temperature Rating: 0°C to +70°C
Weight: 89 kg/km
Standards
Flame Retardant: BS EN 60332-1-2
Low Smoke Generation: BS EN 61034-2
Halogen Gas Emission: BS EN 60754-1&2
RoHS3 Compliant: Yes
CE Compliant: LVD (2014/35/EU), CPR (305/2011)
CPR Classification: Eca (EN50575:2014+A1:2016)
