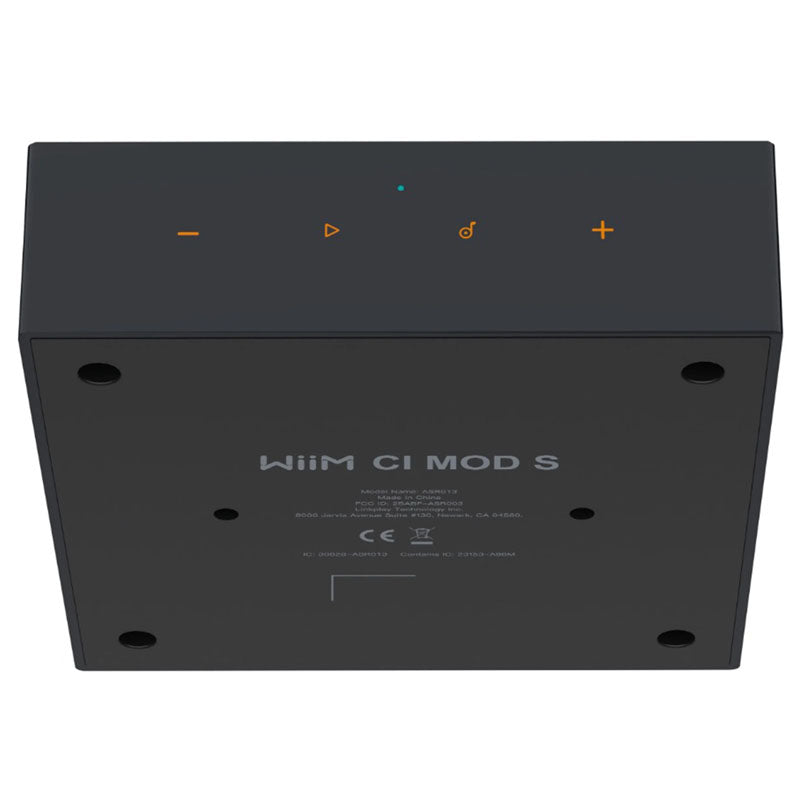

The WiiM MOD S is a high-quality streaming source device. Based on the popular WiiM Pro Plus design, the MOD S is ready to deliver audio from a vast array of services to your zone amplifier. Equipped with multiple input and output options, the 140 x 140 x 42 mm chassis allows the streamer to sit side-by-side with two other MOD S on a typical 19” rack shelf.
Key Features
- Bit-perfect output, up to 192 kHz 24-bit with digital optical or coaxial output
- Wi-Fi, Ethernet and Bluetooth 5.1 connectivity
- Audio Input: 1 x Analog RCA Line input, 1 x SPDIF in Optical, up to 192kHz/24-bit
- Audio Output: 1 x Analog RCA Line output, 1 x Digital optical (SPDIF) output,
1 x Digital Coaxial output, up to 192kHz/32-bit - 12V trigger output
- Audio Protocols: Chromecast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, Roon
- WiiM App Streaming Services: Spotify, Amazon Music, Deezer, TuneIn, Tidal, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, SoundMachine, BBC Radio, Calm Radio, Radio Paradise, Sound Track Your Brand, more to come
- Equaliser: 24 presets, 10-band graphic EQ, 10-band parametric EQ, Bass management, Built-in room correction
- Supported Control Platforms: Control 4, RTI, URC, Josh.ai
- Rack mountable with optional rack mount kit (fits 3 MOD S units)
| Power Input | USB Type-C, requires 5V, 1.5A or higher Bundled adapter: 5V, 2A |
| Digital Audio Output | Bit-perfect output, up to 192 kHz, 24-bit with digital optical or coaxial output |
| Network | 802.11 b/g/n/ac 2.4 GHz and 5 GHz dual bands Wi-Fi 10/100M Ethernet |
| Bluetooth | Bluetooth 5.1 |

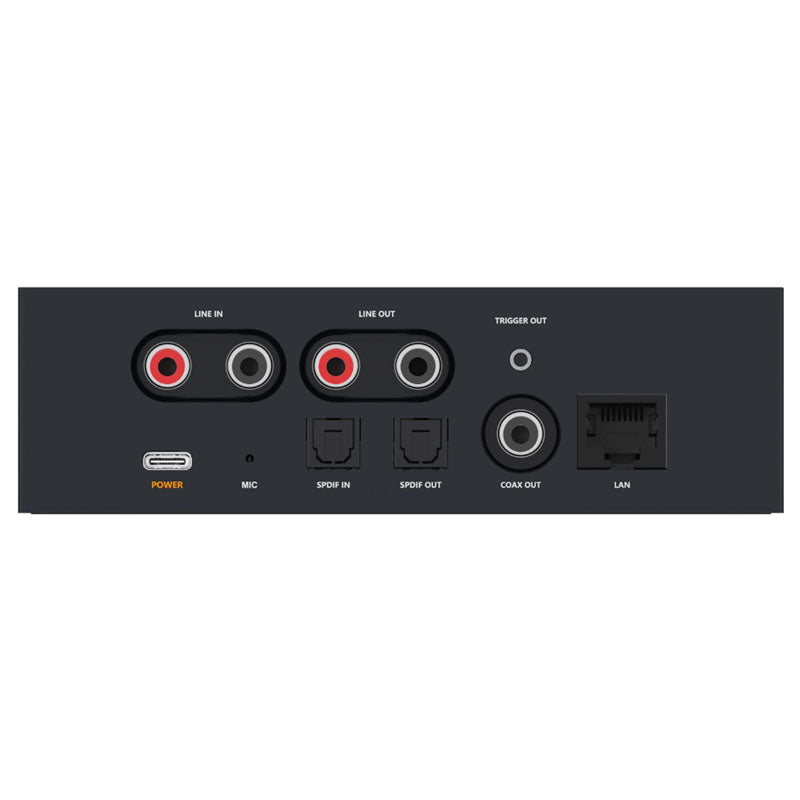

| Audio Input | 1 x Analog RCA Line input, 1 x SPDIF in Optical, up to 192kHz/24-bit |
| Audio Output | 1 x Analog RCA Line output, 1 x Digital optical (SPDIF) output, 1 x Digital Coaxial output, up to 192kHz/32-bit |
| DAC | AKM AK4493SEQ |
| Trigger Out | 3.5mm Trigger out |
| SNR | 120 dB |
| THD+N | 0.00032% (-110 dB) |
| Audio Codec | MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG |
| Equalizer | 24 preset EQ settings for different music genres 10-band graphic EQ that can adjust to optimize sound performance for every audio source (Line in, BT or Network) 10-band parametric R/L EQ that can adjust to optimize the sound performance based on your room characteristics, allowing more fine granular adjustment Bass management Built-in Room Correction |
| Protocol | Chromecast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, Roon |
| Streaming Services in WiiM Home App | Spotify, Amazon Music, Deezer, TuneIn, Tidal, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, SoundMachine, BBC Radio, Calm Radio, Radio Paradise, Sound Track Your Brand, more to come |
| Supported Control Platforms | Control 4, RTI, URC, Josh.ai |

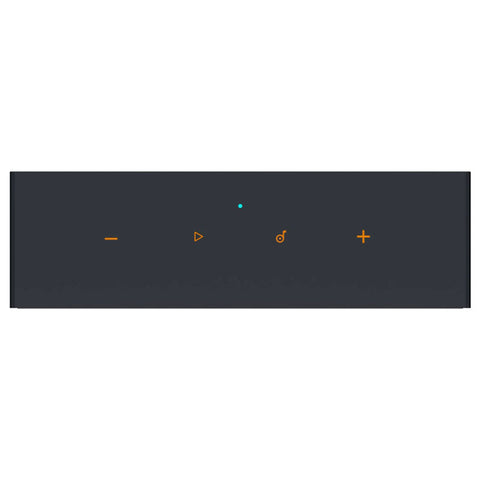

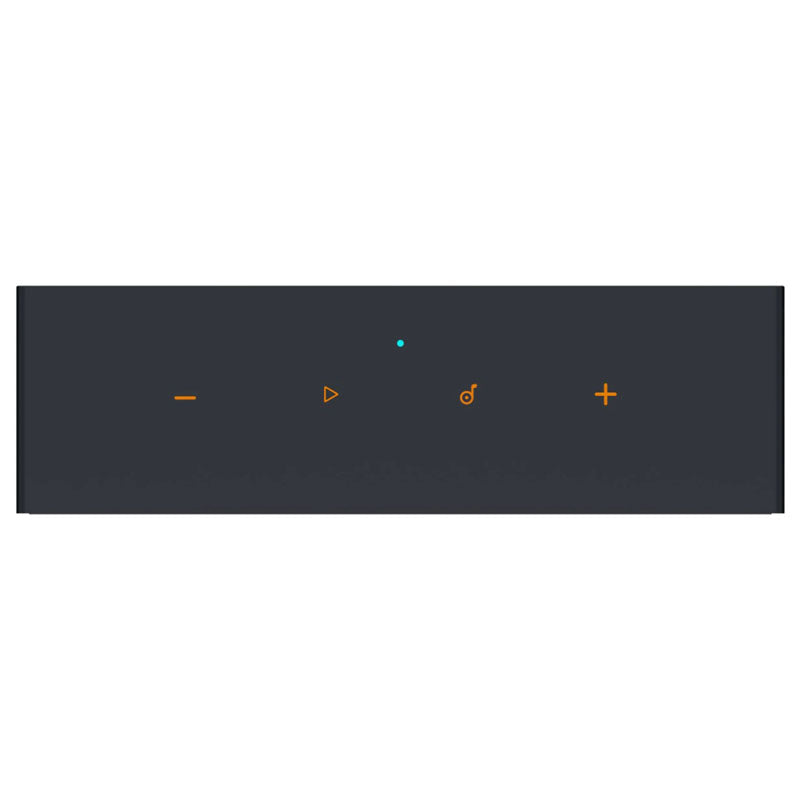

| Buttons | Touch buttons: Play/Pause/Setup, Volume +, Volume -, Preset |
| Weight | 11.6 oz (330g) |
| Dimensions | (L) 5.5 x (W) 5.5 x (H) 1.6 (Inch) / (L) 140 x (W) 140 x (H) 42 (mm) |
| What’s in the box | WiiM CI MOD S (1), Optical cable (1), Stereo RCA cable (1), Type C cable (1), Adapter (1), Screws (3) |
