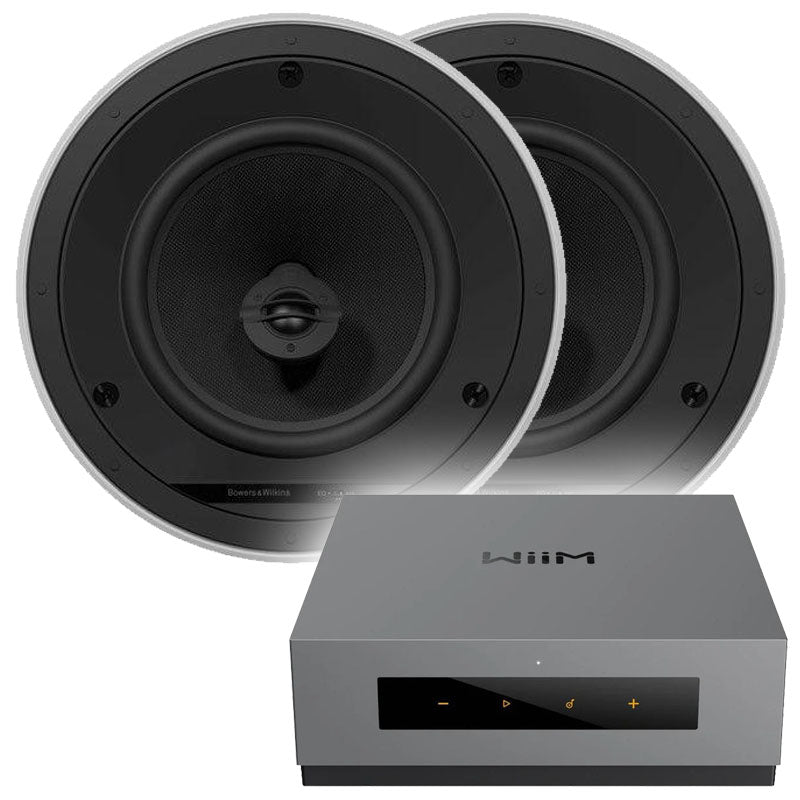

WiiM CI MOD A80 Amplifier & 2 x B&W CCM684 In-Ceiling Speakers

This package consists of a WiiM CI MOD A80 Amplifier and 2 x B&W CCM684 In-Ceiling Speakers.

In our opinion, this package is ideal for a medium-sized room and will provide high-quality audio.

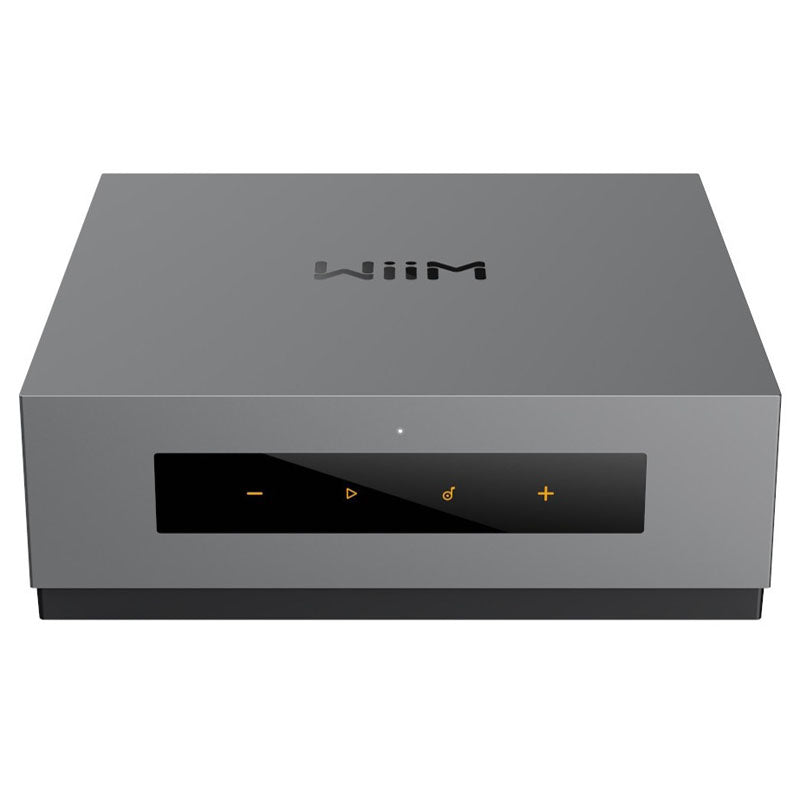

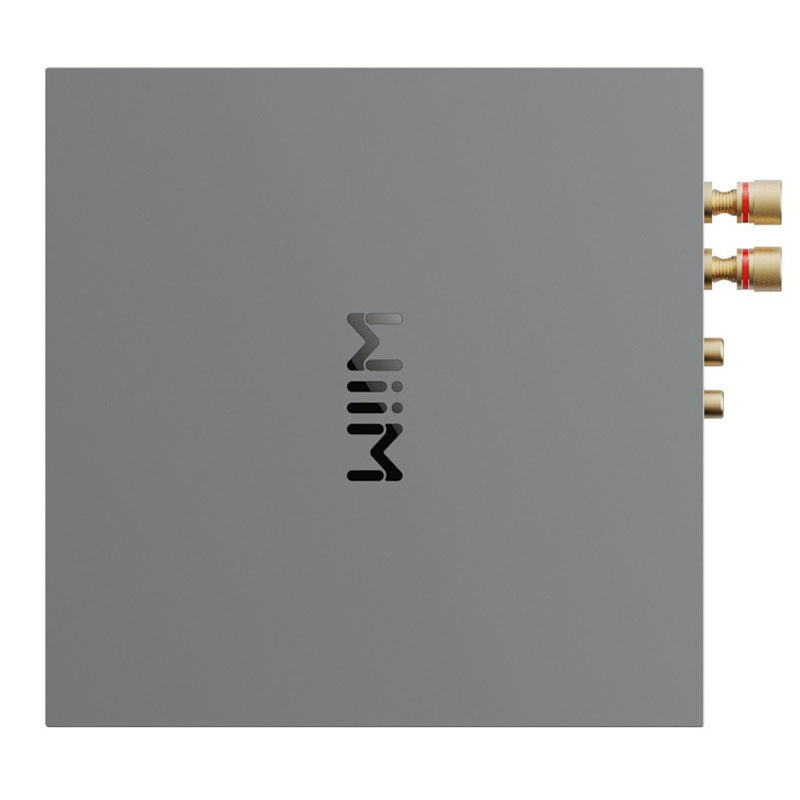

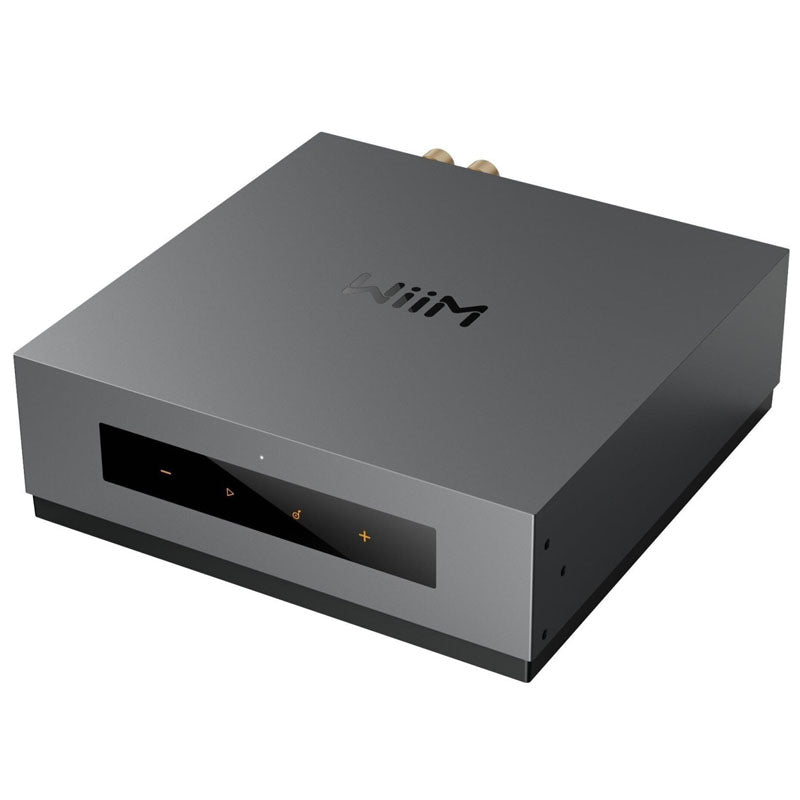

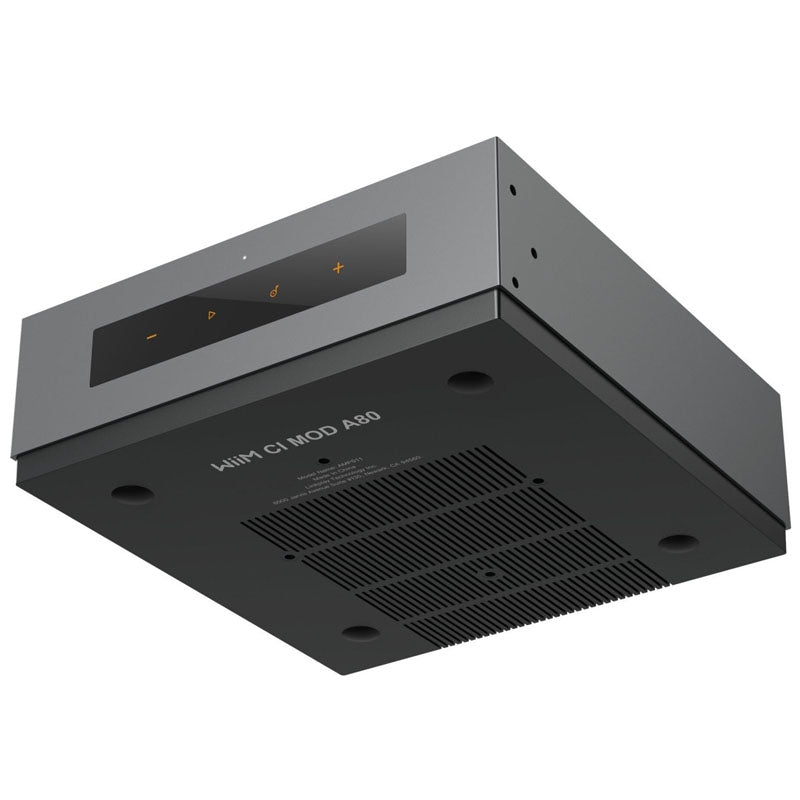

WiiM CI MOD A80 Amplifier

The WiiM CI MOD A80 is a compact, rack‑mountable streaming amplifier designed for custom audio installations. Combining modern streaming convenience with powerful stereo amplification, the A80 is perfect for driving passive in-ceiling and in-wall speakers in multi-room audio systems. It pairs a high‑quality 32‑bit ESS Sabre DAC with an efficient Class‑D amplifier to deliver 60 W per channel into 8 Ω (120 W into 4 Ω). The unit supports Wi‑Fi 6E and Bluetooth 5.3 for wireless streaming, HDMI ARC, optical, RCA and USB inputs, plus subwoofer output for flexible connectivity. The A80 is compatible with popular streaming protocols/services including Chromecast Audio, Spotify Connect, TIDAL Connect and DLNA, and supports Hi‑Res audio up to 24‑bit/192 kHz. Control and EQ customisation is available via the WiiM Home app, making it an extremely flexible streaming amplifier for whole home audio.

Key Features

• Audio & Power
  • 60 W per channel (8 Ω) / 120 W (4 Ω) Class‑D amplifier
  • ESS Sabre 32‑bit DAC for high-fidelity sound
  • High‑res audio up to 24‑bit/192 kHz, gapless playback


• Connectivity & Streaming
  • Wi‑Fi 6E & Bluetooth 5.3
  • Supports Chromecast Audio, Spotify/TIDAL Connect, DLNA, Roon

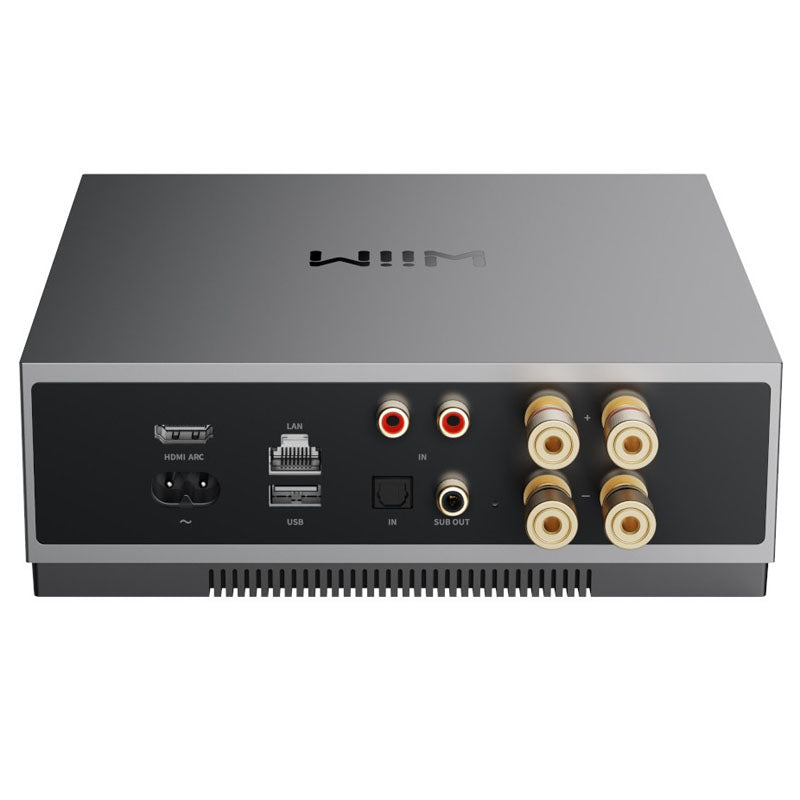

  • Inputs: HDMI ARC, optical, RCA, USB
  • Outputs: speakers & subwoofer


• DSP & Sound Tuning
  • Room correction, bass management, 24 EQ presets, 10‑band graphic EQ


• Integration & Control
  • Compact, rack-mountable design
  • Controlled via WiiM Home app
  • Compatible with Control4, URC, RTI, Josh.ai for smart home

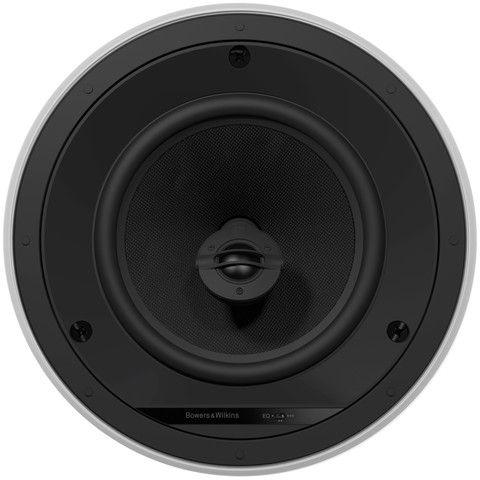

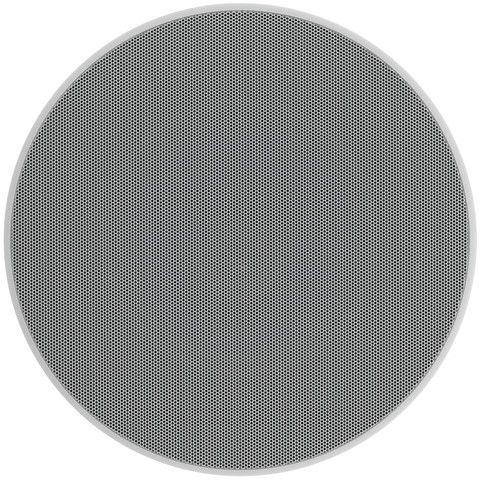

B&W CCM684 In-Ceiling Speakers

The B&W CCM684 in ceiling speakers are a high performance ceiling speaker that's simplicity itself to install and use. The Bowers & Wilkins in ceiling speakers feature a two-way design, featuring a 200mm (8in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. The B&W CCM684 tweeter housing pivots for adjustable off-axis treble response and the speaker also features a three-position EQ switch for a better off-axis response. The B&W CCM684 in ceiling speakers incorporate QuickDogs™ and a plug-and-play functionality it is quick and easy to install.
