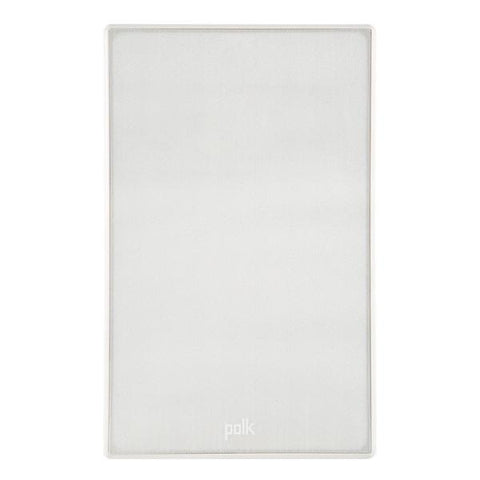

Polk V Series In-Ceiling/In-Wall Custom Install Speakers Created to meet the needs of more modest audio budgets, the new Polk V Series in-wall/in-ceiling speakers complete the highly popular Vanishing Series. Like other speakers in the series, the new V models have Wafer-thin Sheer-Grilles™ that are utterly invisible, fit smoothly flush and are acoustically inert for wide dispersion and uniform sound-coverage even in larger rooms. Square grilles also available for In-ceiling 6-1/2 inch and 8-inch models.
- Dimensions - Cut-Out Height : 12-3/4" (32.38 cm)
- Dimensions - Cut-Out Width : 8-3/4" (22.2 cm)
- Dimensions - Depth : 3-5/8" (9.20 cm)
- Dimensions - Mounting Depth (includes 1/2" drywall) : 3-1/8" (7.94 cm)
- Dimensions Grille - Height : 14-3/8" (36.51 cm)
- Dimensions Surround - Depth : 8" (20.3 cm)
- Driver Complement Tweeter - Diameter : 1" (25 mm)
- Electrical - Max Sensitivity : 90dB
- Electrical - Recommended Amplifier Power : 10/125w/Ch
- Electrical - Total Frequency Response : 30 Hz - 27 kHz
- Electrical - Upper -3dB Limit : 45Hz - 25 kHz
General Information
- Enclosure Type: Open
- Guarantee Period (Months): Lifetime
- Output: Mono
- Power Type: Passive
Application
- Stereo Music
- Home Cinema: Dolby Atmos Speakers, Surround Speakers
Appearance
- Visible Shape: Rectangular
- Visible Colour: White
Dimensions
- Cutout Dimensions (mm): 323.8 x 222
- Mounting Depth (mm): 79.4
- Overall Dimensions (mm): 365.1x225.4
Detailed Specifications
- Compatible Amplifier (Watts RMS): 10 - 125
- Frequency range (Hz): 30 - 27000
- Nominal Impedance (Ω): 8
- Max Power High (Watts): 125
- Sensitivity (dB): 90
Driver Information
- Bass: 1
- Biggest Driver Size (mm): 203
- Tweeter: 1
